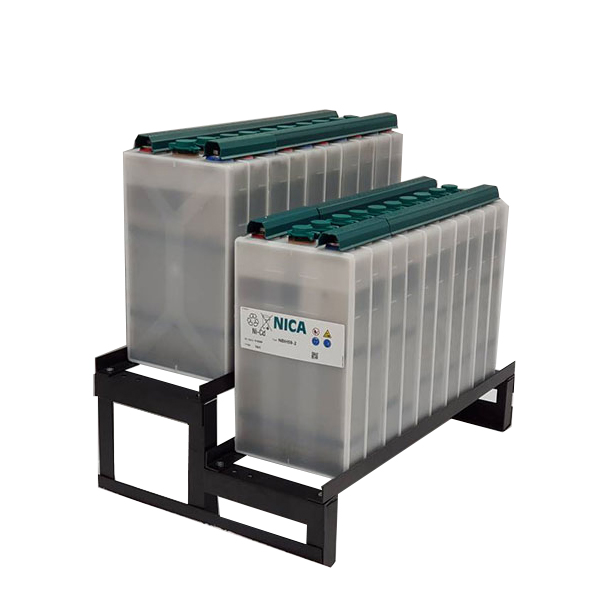

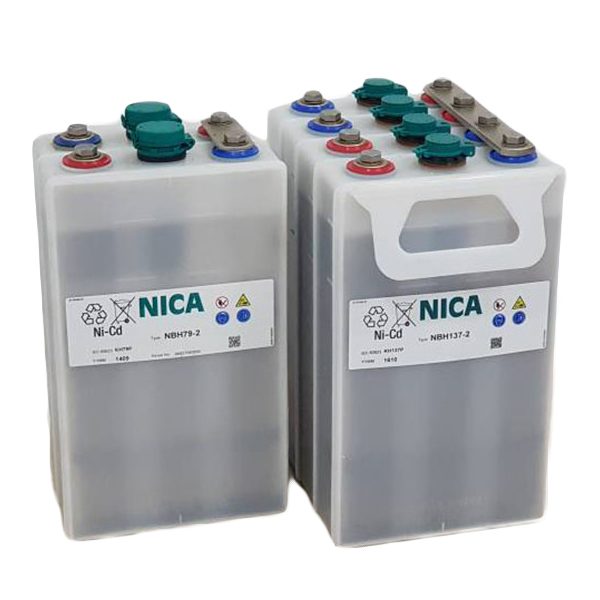

NICA Nickel Cadmium Battery

NICA Nickel Cadmium Battery is the most reliable source for standby power backup today. NICA nickel cadmium battery are manufactured in Sweden under strict quality control and supervision to produce a quality finished product.

NICA Nickel Cadmium Battery is designed and manufactured for a wide varied of harsh environments at wide temperature range, resistance to electrical and mechanical abuses and excellent high rate discharge performance.

NICA has develop the NBLE, NBM and NBH ranges of block batteries to offer the optimum, flexible solution for all stationary applications. The choice of low (L), medium (M) and high (H) capacity types makes it easy to select the ideal battery, based on required discharge time and end of discharge voltage.

More Information

NICA cell full comply with the requirements of the IEC 60623 standard and tested by DNV.GL.

NBLE Range

L type is designed for applications where the battery is required to provide:

  • A reliable source of energy over relatively long discharge periods
  • A current that is relatively low in comparison with the total stored energy
  • Discharges that are generally infrequent
The typical discharge range is from 1 hour to 100 hours. Typical used as power back-up and bulk energy storage.
DOWNLOAD NBLE CATALOG
NBM Range

M type is designed for applications where the batteries are usually required to sustain:

  • Electrical loads for between 30 minutes to 3 hours
  • “Mixed” loads involving a mixture of high and low discharge rates
  • Frequent or infrequent discharges
The typical discharge range is from 15 minutes to 2 hours. Typical used in power back-up applications.
DOWNLOAD NBM CATALOG
NBH Range

H type is designed for applications demanding

  • a relatively high current over short periods
  • usually less than 30 mins. duration
  • The applications can have frequent or infrequent discharges
The typical discharge range is from 1 second to 30 minutes. Typical uses are in starting applications.
DOWNLOAD NBH CATALOG

Application

  • Petrochemical Refineries
  • Gas Turbine Generator
  • Emergency Power Backup
  • UPS
  • Engine Starting
  • Switchgear Tripping
  • Power Plants
  • Water Treatment Plant

CAPACITY RANGE

  • NBLE blocks, from 7.5AH to 1660AH
  • NBM blocks, from 11AH to 1390AH
  • NBH blocks, from 8.3AH to 920AH

Technical Data

Nica Nickel Cadmium Battery Specification

Brand ‘ NICA ‘
Model NBH Series
Type Pocket Plate Nickel Cadmium
Standard compliance IEC 60623
Positive plate construction Nickel
Negative plate construction Cadmium
Nominal voltage per cell 1.2V
Float charge per cell 1.40 to 1.41 volt per cell
High rate (boost) per cell 1.60 to 1.65 volt per cell
Type of electrolyte Potassium Hydroxide
Specific gravity 1.20 +/- 0.01
Weight per cell Refer to product catalog
Dimension per cell Refer to product catalog
Rack configuration 2 steps, 1 tiers
Rack material Epoxy coated angle iron
Battery container Translucent polypropylene
Battery designed life 10-15 years, under float charged standby condition
Accessories Included
