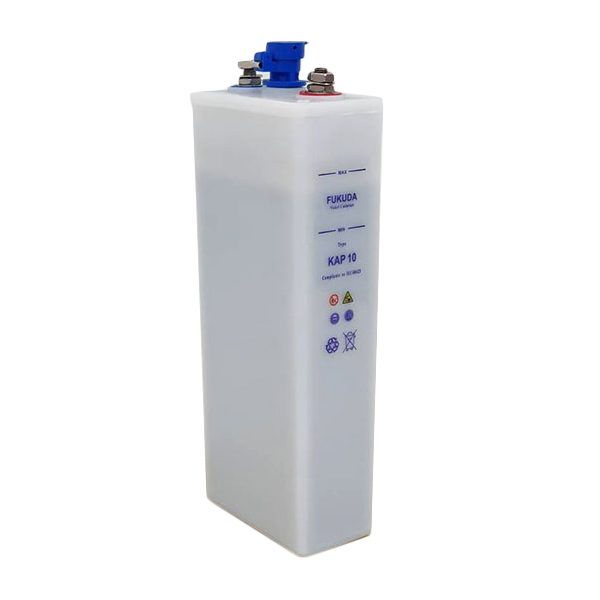

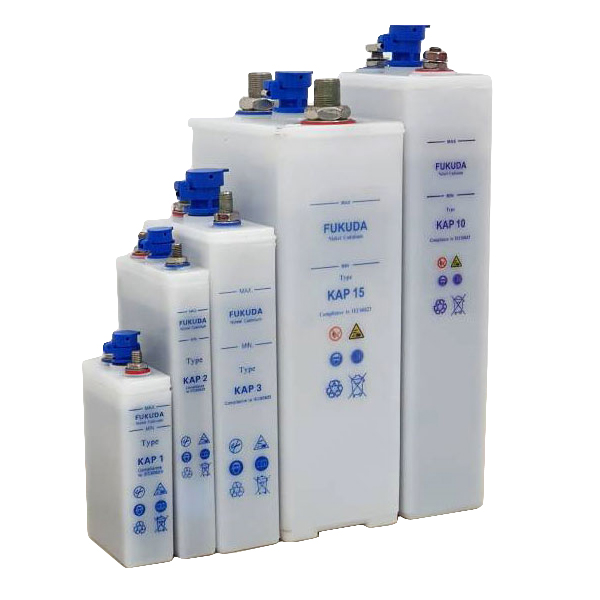

FUKUDA Nickel Cadmium Battery

FUKUDA Nickel Cadmium Battery is one of the most reliable power back-up systems available in the market today. It has the unique feature of quality, safety, long life, low maintenance, reduce cost and safeguarding the environment.

FUKUDA KAP SERIES Nickel Cadmium Battery works by an electrochemical reaction between a Nickel positive plate and a Cadmium negative plate, immersed in a liquid alkaline electrolyte (potassium hydroxide). This reaction produces a nominal voltage of 1.2 volts per cell. Required voltages are obtained by connecting these cells together in series to form a battery.

DOWNLOAD CATALOG

More Information

FUKUDA KAP series batteries cell full comply with the requirement of the IEC 60623 and tested by Intertek International, SIRIM QAS.

Application

  • Switchgear Tripping
  • MRT/LRT Railway
  • UPS
  • DC Instrumentation
  • Water Treatment Plant
  • Commercial / Industrial Buildings

CAPACITY RANGE
From 10AH to 1000AH

Technical Data

FUKUDA NICKEL CADMIUM BATTERY SPECIFICATION

Brand ‘ FUKUDA ‘
Model KAP Series
Type Pocket Plate Nickel Cadmium
Standard compliance IEC 60623
Positive plate construction Nickel
Negative plate construction Cadmium
Nominal voltage per cell 1.2V
Float charge per cell 1.4 to 1.42 volt per cell
High rate (boost) per cell 1.55 to 1.65 volt per cell
Type of electrolyte Potassium Hydroxide
Specific gravity 1.20 +/- 0.01
Weight per cell Refer to product catalog
Dimension per cell Refer to product catalog
Battery container Translucent polypropylene
Battery designed life 10-15 years, under float charged standby condition
Accessories Included
